TOUGHLIX GREASE MP is energy-saving multipurpose extreme pressure grease, which is excellent in energy-saving, temperature rise suppression, sticking property and extreme pressure property. Since the lithium complex is adopted as a thickener, it also has excellent heat resistance and water resistance. TOUGHLIX GREASE MP can be used for grease lubrication points of various machines. TOUGHLIX GREASE MP can extend the bearing life and the grease supply interval, and contributes to the reduction of maintenance works because of reducing the temperature rise of the bearing when it is used.
⚫ SPECIAL FEATURES
- Excellent Energy-Saving Property TOUGHLIX GREASE MP, which is energy-saving multipurpose extreme pressure grease, shows superior energy saving effects in comparison with the market available grease (refer Table 1).

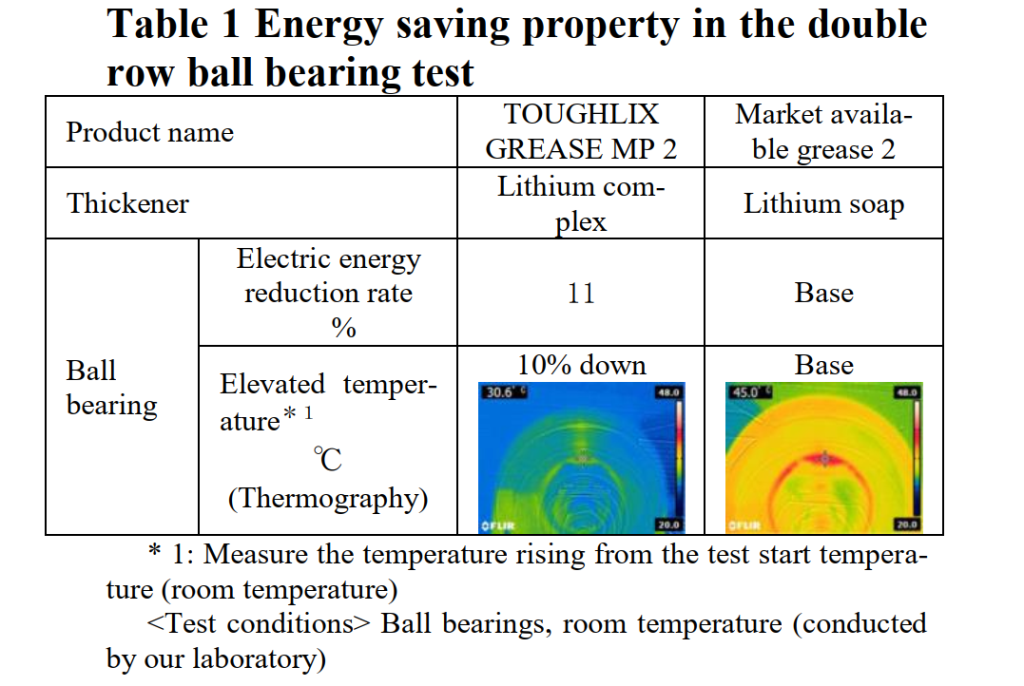

Table 1 Energy saving test results
Product | TOUGHLIX
GREASE MP 2 |
Market
available grease 2 |
|
Thickener | Lithium
complex |
Lithium soap | |
Ball
bearing |
Electric energy
reduction rate, % |
11 | Base |
Temperature
increase*1 ℃ (Thermography) |
10% down | Base |
* 1: Measure the temperature rising from the test start temperature (room temperature)
<Test conditions> Ball bearings, room temperature (conducted by ENEOS laboratory)
- Suppression of Bearing Temperature Rise
TOUGHLIX GREASE MP suppresses the bearing temperature rise in comparison with the commercially available grease by the effect of reducing friction and stirring resistance (refer
Table1). Therefore, it extends the bearing life and the grease supply interval, and also contributes to the reduction of the maintenance works.
- Outstanding High Extreme Pressure Property
Because TOUGHLIX GREASE MP is formulated with extreme pressure agents, it can be used in the grease lubrication point of various machines.
- Superior Thermal Stability and Water Resistance
TOUGHLIX GREASE MP can be used in the high temperature lubrication point because of its high dropping point of over 250°C.
In addition, it can be used in the lubrication point where water is easily mixed, because it is hard to be washed away by water and has the property of small penetration change even if water is contaminated.
⚫ Application
Ball bearings, roller bearings and gears of following equipment.
▪ various industrial machines
▪ various machine tools (main axis, ball screw of feeder, linear guide)
▪ construction machines
▪ agricultural machines
▪ various conveyor machines
▪ motors (electric machinery)
▪ air blowers
▪ pumps.
⚫ CONTAINERS
MP1 | MP2 | |
180kg drum | ✓ | ✓ |
16kg pail can | ✓ | ✓ |
630g bellows-type tube (6 pcs.) | ✓ | ✓ |
400g bellows-type tube (20 pcs.) | ✓ | |
380g bellows-type tube* (20 pcs.) | ✓ |
*: Normal 400 g bellows-type tube is applied due to its small density. The filling amount is 380 g.
⚫ Typical Properties of TOUGHLIX GREASE MP
Grade | MP 1 | MP 2*2 | |
JIS No. | 1 | Not applicable to 2*2 | |
Thickeners type | Lithium complex soap | Lithium complex soap | |
Appearance | Light yellow, Semi
solid |
Light yellow, Semi
solid |
|
Penetration (25oC, 60 strokes) | 314 | 263 | |
Dropping point | °C | Over 250 | Over 250 |
Oil separation (100oC,24h) | mass% | 4.5 | 0.9 |
High speed four-ball test (1800r/min), Weld load | N | 3,090 | 3,090 |
Water washout resistance (38oC, 1h) | mass% | 5 | 2 |
Operating temperature range (approx.) | °C | -20 to 175 | -20 to 175 |
Note 1: The typical properties may be changed without notice. (February 2023)
Note 2: Compared with JIS No. 2 product, we have set it stiff.

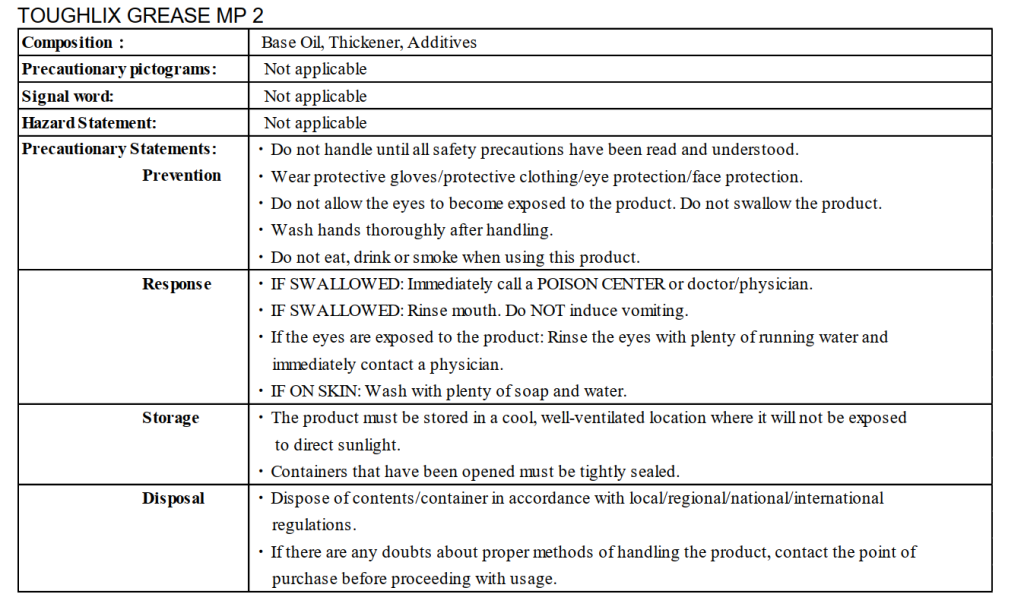

Handling Precautions ▼ Follow these precautions when handling this product.
